Description

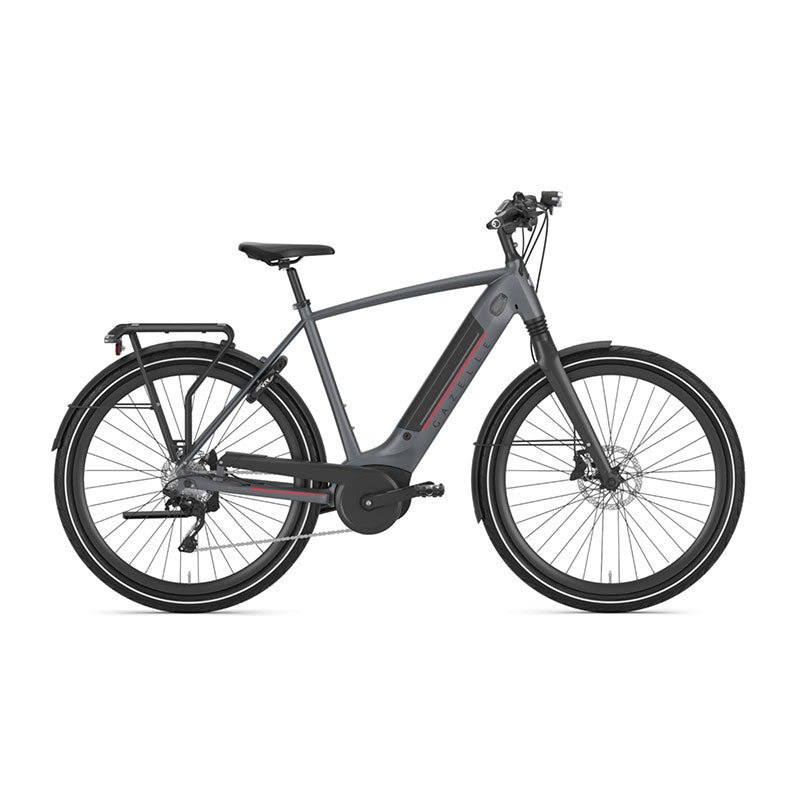

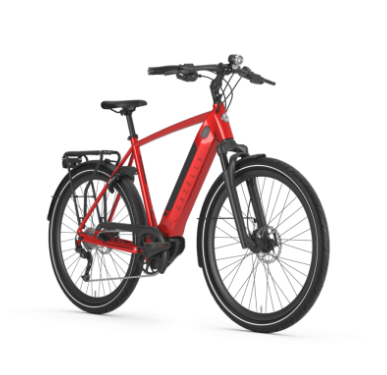

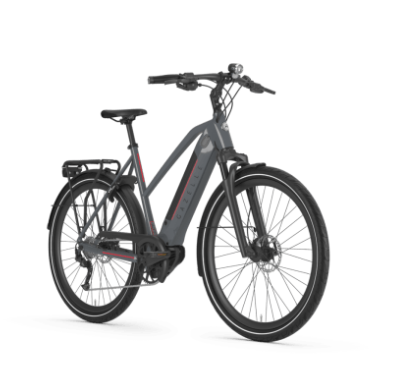

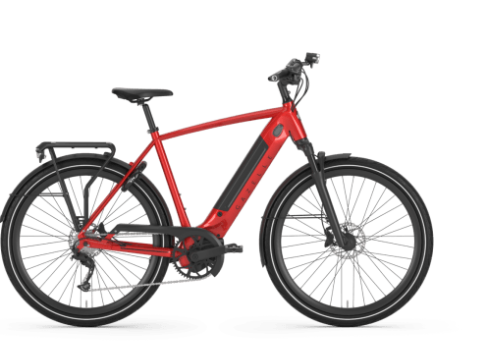

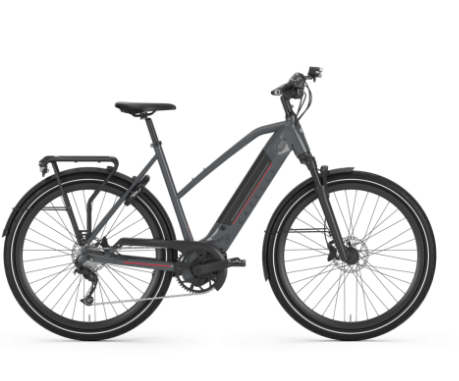

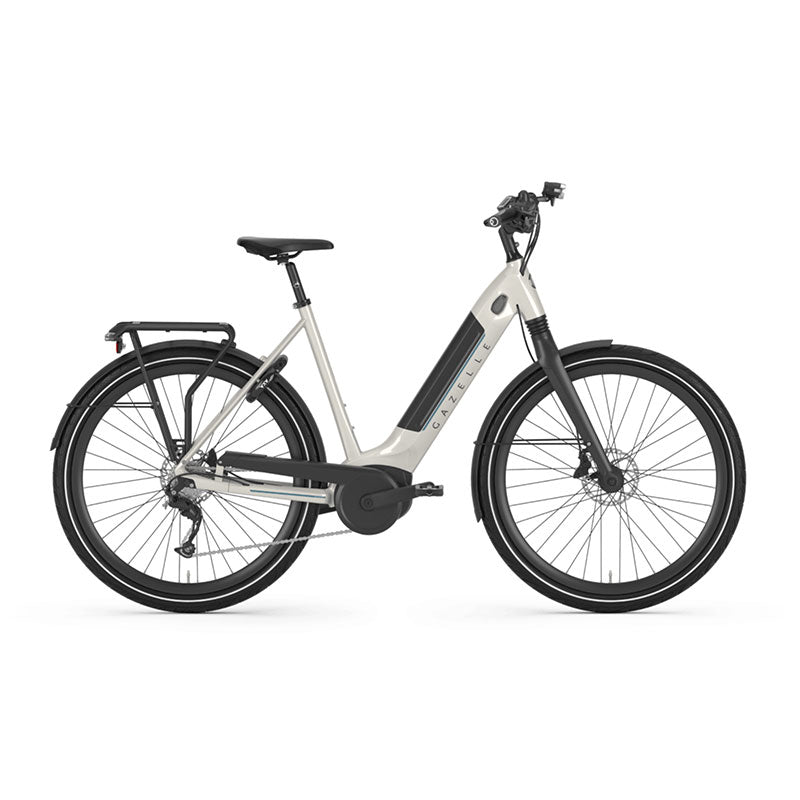

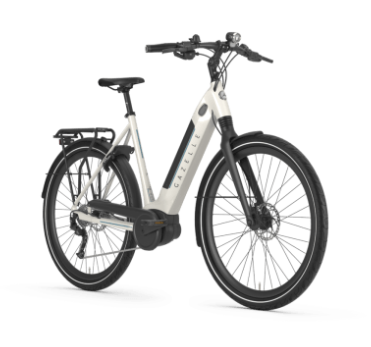

Discover the Gazelle Ultimate T10 HMB
The Gazelle Ultimate T10 is a top of the range trekking e-bike, refined down to the last detail. The first-class groupset including Shimano Deore, Bosch Performance line and ergonomically-shaped handlebar grips enable sporty performance to be achieved. The Ultimate T10 HMB is delightfully stable on the road thanks to the battery and motor integration plus the rigidity of the frame. The dynamic design, high level of comfort and excellent handling make this bike the ideal companion for long recreational trips.
Our powerful battery provides excellent range
| Platinum |
| 70 mi |
| 500 Wh |
| 13,4 Ah |
| 70 mi |
| 40 mi |
| 30 mi |
| 25 mi |
Bosch Performance Line (65 Nm)
The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 65 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.
SPECIFICATIONS
|
MODEL |
Ultimate (2023 models) |
|
WEIGHT |
50.7 lbs / 23 kgs (without pedals) |
|
COLORWAYS |
Champion Red, Cloud Grey, Ivory White |
|
SITTING POSITION |
Sporty |
|
FRAME SHAPE |
Step through / Step over |
|
FRAME SIZE |
46 (Small), 53 (Medium), 57 (Large) |
|
FRAME DESC |
Stable aluminum frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail. |
|
FRAME MATERIAL |
Aluminum Alloy |
|
FORK MATERIAL |
Aluminum Alloy |
|
FORK SUSPENSION TYPE |
Internal to headset |
|
FORK TRAVEL |
40 mm |
|
WHEEL SIZE |
28” |
|
RIMS |
Ryde Dutch |
|
FRONT HUB |
Shimano |
|
REAR HUB |
Shimano Deore |
|
TIRES |
Schwalbe Energizer Plus |
|
TIRE COLOR |
Black |
|
TIRE SIZE ETRTO |
47-622 |
|
GEAR TYPE |
Derailleur |
|
GEARS |
10 speed |
|
REAR DERAILLEUR |
Shimano Deore |
|
CHAINRING |
38T |
|
CASSETTE |
11-36 |
|
SHIFTER |
Shimano Deore |
|
FRONT BRAKE |
Hydraulic disc brake |
|
REAR BRAKE |
Hydraulic disc brake |
|
HANDLEBAR |
Aluminum alloy with slight rise and sweep |
|
STEM |
Adjustable stem |
|
GRIPS |
Ergon GP1-L ergonomic grips |
|
SADDLE |
Selle Royal Loire |
|
FRONT LIGHT |
Axa Blue Line 50, 50 Lux, Powered from internal battery, switch via display |
|
REAR LIGHT |
Hermans H-Cargo, Powered from internal battery, switch via display |
|
MOTOR |
Bosch Performance Line mid-drive motor Class 1 (20 mph max) 65 nm torque, pedal force sensor, rotation sensor, speed sensor |
|
BATTERY |
Bosch Li-ion replaceable integrated removable |
|
DISPLAY |
Bosch Purion LCD display with 4 pedals assist levels and walk assist |
|
LOCK |
AXA ART certified ring lock with an option for plug-in cable to attach your bike to a fixed object for extra protection against theft |
|
CHAINGUARD |
Aluminum alloy |
|
KICKSTAND |
Drop down rear stand |
|
REAR RACK |
Alluminum alloy (maximum load 25 kg / 55 lbs) |
